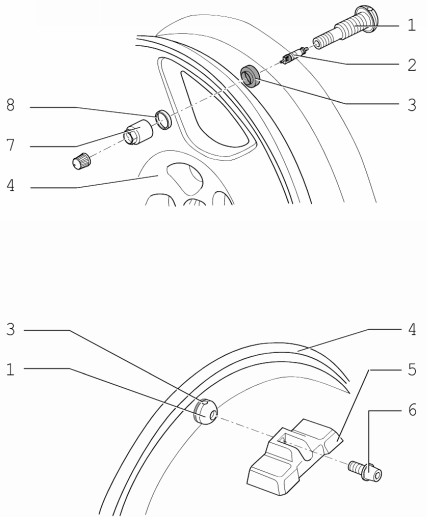

Wheels - exploded view

1 -	Metal valve body

Use only correct valves as specified in ELSA

Supplied as complete unit

Always renew valve core when changing tyre

Removing and installing

2 -	Valve core

3 -

Seal

Removing and installing

4 -

Rim

Removing and fitting tyre

5 -	Wheel electronics

Renew as complete unit

Battery service life approx. 7 years

Remaining service life, temperature and inflation pressure can be read out via diagnosis function with vehicle diagnostic, testing and information system -VAS 5051 A-

6 -	Micro-encapsulated Torx -T20- bolt

Tightening torque: 4 Nm

Always renew bolt

Replacement part only available together with wheel electronics

7 -

Union nut

Tightening torque: 4 Nm

Removing and installing

8 -	Chamfered washer
