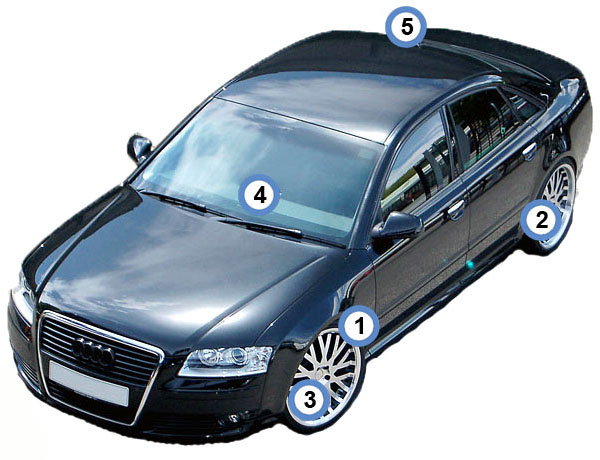

Overview of tyre pressure monitoring system components



1 Front left -R59- and front right -R60- tyre pressure monitoring aerial   Removing and installing 2 Rear left -R61- and rear right -R62- tyre pressure monitoring aerial   Removing and installing 3 Tyre pressure sensor, front left -G222-, front right -G223-, rear left -G224- and rear right -G225   Spare wheel tyre pressure sensor -G226-   Removing and installing 4 Display in instrument cluster   Refer to vehicle diagnostic, testing and information system -VAS 5051 A   Operating Instructions 5 Tyre pressure monitor control unit -J502-   Beneath rear seat bench on left side   Removing and Installing
