Removing and installing rear reception aerials
Special tools required   Torque wrench -V.A.G 1783-
Removing Re Reception aerials are located behind wheel housing liners. – Position vehicle on lifting platform . – Switch off ignition. – Remove wheel housing liner . .

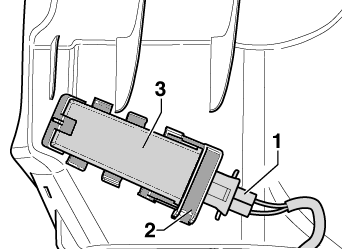

– Unplug connector -1-. – Release clip -2-. – Take out aerial -3-. – Remove holder from rear reception aerial. – Unclip aerial.

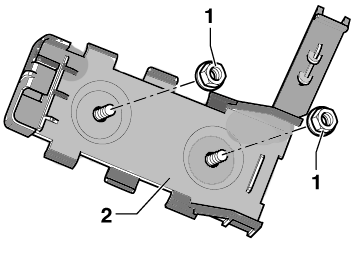

– Unscrew hexagon nuts -1-. – Take out aerial holder -2-. Installing Installation is carried out in the reverse sequence.
– Tighten hexagon nuts -1- to 2 Nm. – Fit wheel housing liner . – Set down vehicle on its wheels .
