15 - Airbag

Coding



a

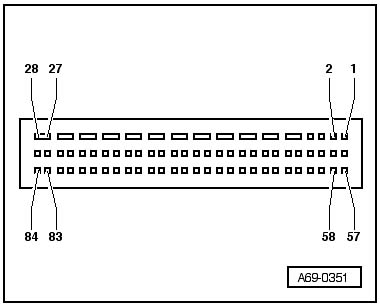

J234- Airbag control unit pin assignment



The rectangular tabs

(e.g. 27, 28) are the normally-closed contacts for the ignition circuits underneath

(e.g. 55, 56).



Read measured value block

The following measured values are displayed:

Output signals:



Measured value block 001:

Airbag driver side                  (correct; too small; too large; endp. earth; endp. positive)

Airbag passenger side           (correct; too small; too large; endp. earth; endp. positive)

Belt tensioner driver side       (correct; too small; too large; endp. earth; endp. positive)

Belt tensioner passenger side               (correct; too small; too large; endp. earth; endp. positive)



Measured value block 002:

Rear belt tensioner driver side                              (correct; too small; too large; endp. earth; endp. positive)

Rear belt tensioner passenger side       (correct; too small; too large; endp. earth; endp. positive)

Rear centre belt tensioner                     (correct; too small; too large; endp. earth; endp. positive)

Vacant



Measured value block 003:

Supply voltage                          (correct; too small)

Vacant

Belt tensioner driver side                      (too small; too large; endp. earth; endp. positive; n.defined; belt YES; belt NO)

Belt tensioner passenger side       (too small; too large; endp. earth; endp. positive; n.defined; belt YES; belt NO)





Measured value block 004:

Belt detector rear driver side

(too small; too large; endp. earth; endp. positive; n.defined; belt YES; belt NO)



Belt detector rear passenger side

(too small; too large; endp. earth; endp. positive; n.defined; belt YES; belt NO)



Rear centre belt detector

(too small; too large; endp. earth; endp. positive; n.defined; belt YES; belt NO)





Measured value block 006:

Front side airbag igniter driver side       (correct; too small; too large; endp. earth; endp. positive)

Front side airbag igniter passenger side               (correct; too small; too large; endp. earth; endp. positive)

Rear side airbag igniter driver side        (correct; too small; too large; endp. earth; endp. positive)

Rear side airbag igniter passenger side (correct; too small; too large; endp. earth; endp. positive)





Measured value block 008:

Airbag driver side 2-stage                     (correct; too small; too large; endp. earth; endp. positive)

Airbag passenger side 2-stage             (correct; too small; too large; endp. earth; endp. positive)

Driver side curtain airbag igniter            (correct; too small; too large; endp. earth; endp. positive)

Passenger side curtain airbag igniter     (correct; too small; too large; endp. earth; endp. positive)





Measured value block 008:

Front passenger airbag key switch (result from hardware and software test)

(On; Off)

Front passenger airbag key switch (hardware test)

(too small; too large; endp. earth; endp. Positive; n.defined; On fp airbag; Off fp airbag)

Front passenger airbag key switch (software test)

(too small; too large; endp. earth; endp. Positive; n.defined; On fp airbag; Off fp airbag)





Measured value block 011:

Knee airbag igniter, driver side              (correct; too small; too large; endp. earth; endp. positive)

Knee airbag igniter, passenger side      (correct; too small; too large; endp. earth; endp. positive)















J234- Removing and installing airbag control unit

a



- Remove the centre console at the rear.

A General Body Repairs, Interior.

- Remove the insulation.



- Open the lock -3-.



- Unplug the connector -4-.



- Unscrew the nuts -2- (3x). (tightening torque 9 Nm).



- Remove the control unit -1-.



J655- Battery cut-off

a

When the airbag control unit has triggered a battery cut-off by way of the crash signal or the final control element test, the battery can be switched back on by pressing the yellow button -1-.

1- Restart button

2- Retainer tab

3- Connector to airbag control unit

4- Cover

The battery cut-off relay

a



(J655) will be replaced from around MY 2005 by

the battery isolation igniter

(N253)



Fitting location of relay/igniter:

  In boot at right in front of battery



J655 - Battery cut-off relay



1 - Yellow button (reset function)

     Not present in all vehicle

     versions !!!

     If present, the

     button must be pressed after crash

     signal triggering or

     airbag final control diagnosis fully

2- Retainer tab

3 - Connector

     To airbag control unit (J234)

     and terminal 15

4- Cover



From software release S082 and S084 and with button omitted,

after a crash the relay for battery cut-off (J655) must be replaced.
