Use this form to generate the VIM (Video In Motion) login-code to gain write-access to any MMI 3G head unit to enable TV/DVD-playback at all vehicle speeds.



Instructions:



1. Select control module 5F in VAG-COM/VCDS
2. Select "Advanced ID - 1A"
3. Submit the value from the "Serial number" field in the form below. If there is more than one serial number field, use the first one!
4. "Security Access - 16"
5. Enter the personal login-code provided below
6. Press "Do It!". If you receive a "code not valid" message try the alternative code. If neither code works it's likely that your control module doesn't support VIM adaptation.
7. Select "Adaptation - 10"
8. Select channel 48
9. Press read
10. Set the value to 255
11. Press test
12. Press save
13. Press "Done, Go Back", close the controller and quit the software

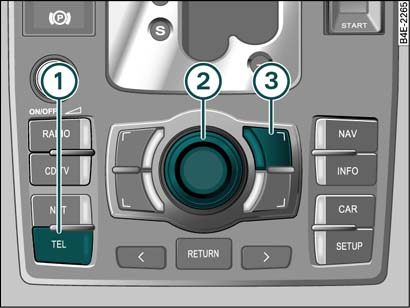

14. Restart the MMI: Press and hold down the function keys 1 (TEL), the control button 2 and the control key at the top right 3 simultaneously until the MMI system shuts down. Release keys -> MMI system reboot



Restarting the MMI on newer models with the touchpad system: It simply changes from using the SETUP button to the MENU button, the other two buttons remain the same



Enter serial number:	Example: 431CM027563721



0 alternative number 0
