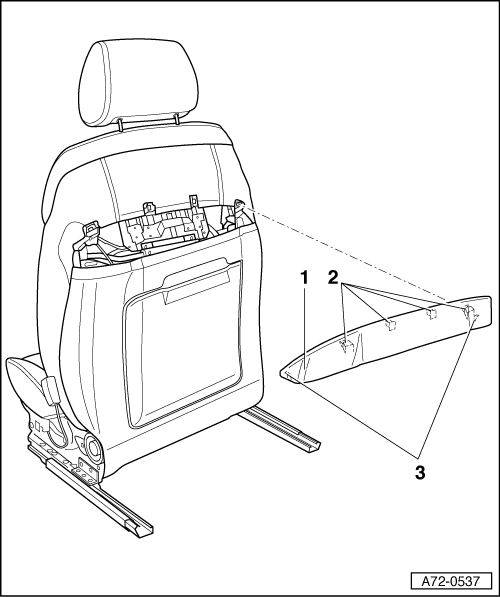

Remove cover panel (top)

Note: On some vehicles the top cover panel is different and has several more clips or are in different locations

Removing

–	Move upper backrest forwards as far as it will go.

–	Unfasten clips -2- (4x) by inserting flat screwdriver in clip and turning screwdriver clockwise until clip is released.

–	Disengage backrest cover panel -1- upwards from retainers -3- (2x).

Re-installing

–	Fit backrest cover panel (top) -1- in reverse order of removal.

2 -	Clips (4x)

3 -	Holders (2x)

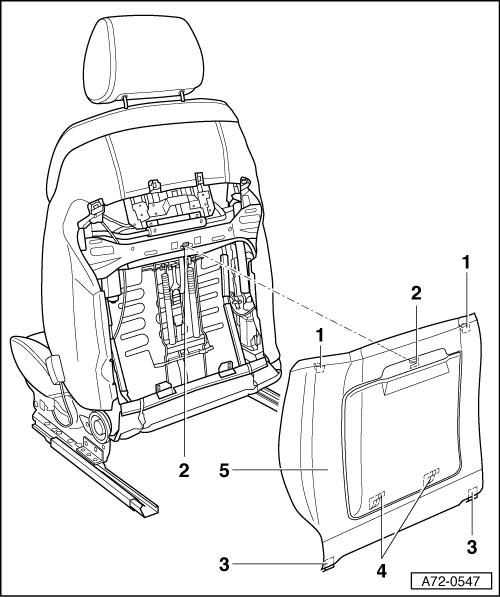

Remove Cover Panel (Bottom)

1 -	Clips (2x)

2 -

Clip

3 -	Holders (2x)

4 -	Holders (2x)

5 -	Backrest cover panel (bottom)

Removing

–	Unfasten clips -1- (2x) by inserting flat screwdriver in clip and turning screwdriver clockwise until clip is released.

–	Unfasten clip -2- by inserting flat screwdriver in clip and turning screwdriver clockwise until clip is released as far as first detent.

–	Use flat screwdriver to push clip -2- to left until backrest cover panel -5- is released.

–	Disengage backrest cover panel -5- upwards from holders -3- (2x) and -4- (2x).

Installing

–	Renew clips -1- (2x) and -2- if damaged.

–	Guide clip -2- into clip holder.

–	Install backrest cover panel in reverse order of removal.
