This article can be used to change all of your interior bulbs to LED format, or if you ignore the LED section for changing a blown bulb



Canbus errors

You should not get any canbus errors with the interior lights.



LED Bulbs

Type All interior bulbs are type 501



4x Front dome and map
4x Rear dome and map
4x Doors courtesy lights
3x Boot
1x Glovebox

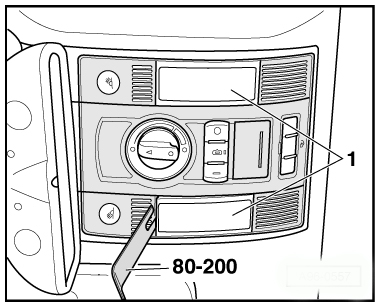

Renewing front interior light bulb - vehicles up to 08.2007



Removing – Carefully prise front edge of cover panels -1- out of interior light using removal lever -80 - 200- as shown in illustration.

– Take glass base bulb -1- (12 V, 6 W) out of clamp-type holder. Installing Installation is carried out in the reverse order; note the following: – Press on cover for interior light until it engages.

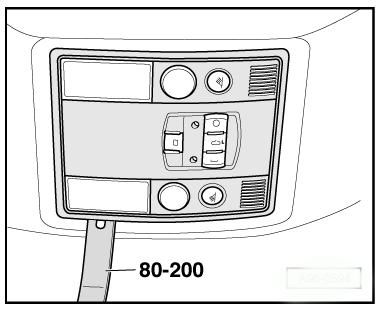

Renewing rear interior light bulb - vehicles up to 08.2007

Removing – Use removal lever -80 - 200- to carefully pry off cover panel of interior light/reading light as shown.

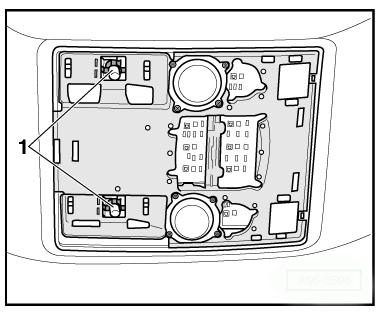

– Take glass base bulb -1- (12 V, 6 W) out of clamp-type holder. Installing Installation is carried out in the reverse order; note the following: – Press on cover for interior light until it engages.

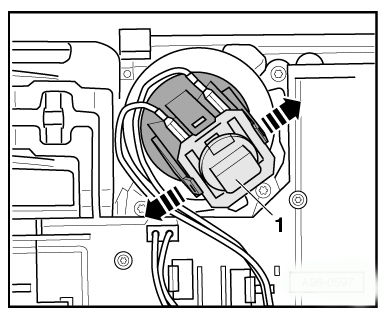

Renewing rear reading light bulb - vehicles up to 08.2007

Removing – Release retaining tabs -arrows- and swivel bulb holder out of mounting. – Take glass base bulb (12 V, 6 W) out of clamp-type holder. Installing Installation is carried out in the reverse order; note the following: – Insert rear interior light/reading light into roof trim and clip into place.
